配件料號：

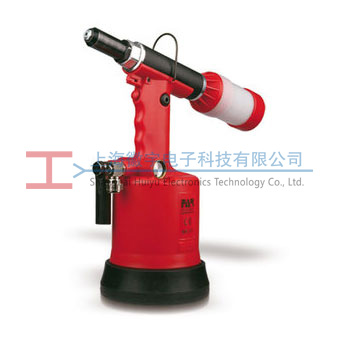

| 型號： | RAC171 | ||
| Articleno. | Designation | Articleno. | Designation |
| 717004 | nozle for rivet g 4,8 Cu/steel | 710916 | 0 Ring 2-15 Parker |
| 713253 | Head carrying nozzle | 710528 | 0 Ring 008 D. |
| 711337 | 0 Ring 2-21 Parker | 710822 | Valve piston |
| 710562 | Cone holding clmaps | 710258 | 0 Ring 5-612 Parker |
| 71345507 | High-performance clamps | 710905 | Seeger ring 11 I |
| 710011 | Standard clamps | 710922 | O Ring 018 Dowty |
| 711270 | Clamps opener | 712268 | Spring guide plug |
| 710853 | clamps return spring | 710402 | Seeger ring 22 I |
| 711336 | 0 Ring 2-114 N674/70 Parker | 712282 | Safety washer S 12,7 |
| 713254 | cone holder | 710909 | Connector2023-1/4-1/4 |
| 713249 | Expeller tube | 711304 | Silencer 1/4 |
| 713255 | front connector | 711305 | Connector1631-01-1/A |
| 711722 | balsele B-094063 NEI | 712162 | Outside silencer protection |
| 713272 | 0 Ring 2-125 N674/70 Parker | 712133 | Rotating connector |
| 713278 | 0 Ring 2-121 N552/90 Parker | 721224 | Tool bod |
| 713277 | Parbak8.122 | 711252 | Tube Φ 8x7 |
| 713276 | balsele TSE 134094 | 713245 | Guide stem connector |
| 713258 | Anti-extrusion ring | 711339 | 0 Ring 2-129 N674/70 Parker |
| 713251 | Oil-dynamic piston | 713246 | Dampener |
| 713273 | 0 Ring 17,5x1,5 | 713243 | Stem |
| 713274 | 0 Ring 8x1,5 | 713244 | Washer piston |
| 713247 | Bush | 721226 | pneumatic piston |
| 711821 | Seeger ring JV 20 | 711340 | O Ring 2-343 Parker |
| 713275 | 0 Ring 2-122 N674/70 P | 710596 | Screw M10 x1 |
| 723269 | Oil-dynamic cylinder | 711386 | O Ring 2-45 Parker |
| 710873 | Balancer hook | 711255 | Bottom |
| 710350 | 0Rng2109N67470 Parker | 711225 | Cylinder cover |
| 713250 | Back connector | 711737 | Protection bottom |
| 711273 | Container connector | 711092 | Key |
| 710819 | Nails container | 721387 | Oil container |
| 711136 | Air conveyor | 713391 | Key |
| 713282 | balsele TSE 16x23x6 | 717005 | Nozzle for rivet Φ 6÷6, 40 |
| 713281 | Gasket TTS 16x23x5, 8/L | 717007 | Nozzle for rivet g 7, 8 |
| 710367 | 0 Ring 2-8 Parker | 717018 | Nozzle for rivet Huck Φ 4,8(3/16"） |
| 711234 | Pin INA 2x11.8 | 717019 | Nozzle for rivet Huck Φ6, 4(1/4") |
| 721275 | long valve body | 717015 | Nozle for rivet Farbolt, Monobolt Φ 6，4(1/4") |
| 710918 | 0 Ring 2-5 Parker | 717016 | Nozle for rivet Farbolt, MonoboltΦ 4,8(3/16") |
| 711254 | Valve piston | 713213 | Clamps for Farbolt, Monobolt, Magna-lok |
| 711338 | 0 Ring 2-3 Parker | 711356 | Cone holding clamps for Farbolt, Monobolt, Magna-lok |
| 711261 | Leve for inlet opening | 711370 | Out put connector |
| 710824 | Push-button | 71345212 | Nails baffle |
| 710919 | 0 Ring 2-4 Parker | 743254 | Cone holder kit |
| 711253 | Valve piston | 713254 | Cone holder713249 Expeller tube |
| 712145 | NutM3UN5587-68 | 740819 | Nails container kit |
| 712144 | Screw TCE M3x 20 UNI 5931 | 710819 | Nails container |
| 710906 | Hermetic washer 400-020-4490 | 711136 | Air conveyor |
| 710839 | Oil tank plug | 742144 | Screw M3 kit |
| 711259 | Cap | 712145 | Nut M3 UNI 5587-68 |
| 712117 | Washer stopping spring | 712144 | Screw TCE M3 x 20 UNI 5931 |
| 710840 | Valve spacer | 740840 | Valve spacer kit |
| 710823 | Cage | 710840 | Valve spacer |
| 710921 | 0 Ring 2-115 Parker | 710823 | Cage |
| 711158 | Coil return spring | 710921 | 0 Ring 2-115 Parker |
| 710841 | Coil | 711158 | Coil return spring |
