配件料號:

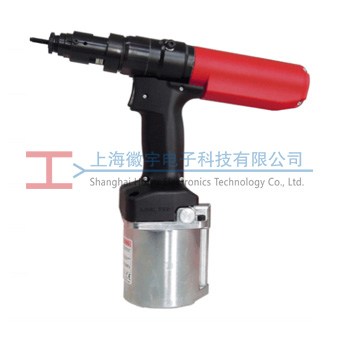

| Model No.N1A2 | |||
| Code | Parts Name | Code | Parts Name |
| 64892 | Frame | 64930 | Grip Cover RH |
| 64891 | Cylinder Cup | 64931 | Air Motor Cover LH |
| 64882 | Cylinder Cap Unit | 64916 | Air Motor Cover RH |
| 64883 | Air Piston Unit | 10434 | O-Ring P-14 |
| 64887 | Spool Connector Unit | 10435 | B-Ring P-14 |
| 64886 | Air Motor Unit | 14445 | O-Ring P-30 |
| 64936 | M6 Screw Mandrel | 64943 | B-Ring P-30 |
| 64934 | M4 Screw Mandrel | 93179 | O-Ring SS-10 |
| 64935 | M5 Screw Mandrel | 23663 | O-Ring P-11 |
| 64937 | M8 Screw Mandrel | 40109 | B-Ring P-11 |
| 64938 | M10 Screw Mandrel | 64951 | Urethane Tube 25 |
| 64943 | M6 Nose-Piece | 64952 | Urethane Tube 50 |
| 64941 | M4 Nose-Piece | 64953 | Urethane Tube 110 |
| 64942 | M5 Nose-Piece | 64954 | Urethane Tube 145 |
| 64944 | M8 Nose-Piece | 64955 | Urethane Tube 200 |
| 64945 | M10 Nose-Piece | 64956 | Urethane Tube 215 |
| 64947 | ose-Piece Lock Nut | 64909 | Urethane Tube 245 |
| 64904 | Nose-Piece Base | 64910 | Warning Label |
| 64901 | Frame Head | 64975 | Reverse Button |
| 64923 | Mandrel Case | 64920 | Mini Fitting Coupling (VGY-208) |
| 64902 | Stroke Adjusting Dial | 29350 | Valve Unit |
| 64903 | Adjusting Dial Seal | 43732 | Barb Coupling for Soft Tube |
| 64977 | Stroke Adjusting Lock Sleeve | 63226 | Barb Elbow for Soft Tube |
| 64978 | Stroke Adjusting Lock Spring | 64917 | Valve Unit Anchor Plate |
| 12917 | Steel Ball ∅ 4 | 15468 | Hanger |
| 64925 | Stop Ring | 64932 | Grip Collar |
| 64928 | Stop Spring | 63209 | Sealing Washer |
| 64924 | Lock Sleeve | 64969 | Tapping Screw for Synthetic Resin M3X8 |
| 64927 | Lock Nut | 43736 | Hex Socket Bolt M3X5 |
| 64922 | Return Piston | 63213 | Bleed Plug |
| 64900 | Oil Piston | 64971 | Hex Socket Bolt M5X30 |
| 64926 | Conveyor Rod | 64409 | Hex Socket Bolt M5X10 |
| 64948 | Clutch A | 29624 | Priming Pump |
| 64949 | Clutch B | 20860 | Cross Recessed Pan Head Screw M3X8 |
| 64950 | Clutch Spring | 64919 | O-Ring SS-5 |
| 63228 | Frame Mounting Nut | 64972 | Plain label for reverse valve |
| 29348 | Switch | Code | Parts Name |
| 64929 | Grip Cover LH | 64895 | Spool Cap |
| Code | Parts Name | 23709 | O-Ring S-12 |
| 64933 | M3 Screw Mandrel | 64918 | Spool Spring |
| 64939 | M12 Screw Mandre | 40474 | Spool Axis |
| 64940 | M3 Nose-Piece | 10219 | O-Ring P-9 |
| 64946 | M12 Nose-Piece | 64960 | Hexagon Socket Head Cap Set Screw M5 x 5 |
| 10012 | Hydraulic Oil in a Bottle | 64894 | Cylinder Cap |
| 889 | Hydraulic Oil in a Bottle | 63245 | Screw M7 x 1 |
| 43738 | One Touch Straight Joint | ||
| 64914 | Reverse Valve | ||
| 29664 | O-Ring S-4 | ||
| 64905 | O-Ring P-10B | ||
| 64915 | Reverse Valve Cap A | ||
| 63226 | Barb Elbow for Soft Tube | ||
| 40475 | Spool Sea | ||
| 64913 | Collar | ||
| 10150 | O-Ring P-6 | ||
| 64912 | Reverse Valve Sleeve | ||
| 63988 | O-Ring S-15 | ||
| 64959 | One Touch Joint Elbow | ||
| 10220 | O-Ring S-6 | ||
| 64896 | Reverse Valve Cap B | ||
| 10149 | O-Ring P-7 | ||
| 64961 | O-Ring S-3 | ||
| 64897 | Cap | ||
